Top Clean Trend XL Aluminum Entrance Matting - 22mm with Grooved Rubbe

Name: Top Clean Trend XL Aluminum Entrance Matting - 22mm with Grooved Rubber & Cassette Brush
Brand: Geggus
SKU: TREND XL-22MM -GRC-CC
Price: 132.0 CAD
Availability: InStock

Description
Details
Technical Specifications
Special Features
Cleaning and Maintenance

Description

The '22mm TOP CLEAN TREND® XL Entrance Matting System' combines grooved rubber and cassette brushes in an extra-wide profile, housed in a heavy-duty aluminium frame. Designed for recessed use, this matting system is perfect for large, spacious commercial entrance areas. It can handle heavy foot traffic, trolleys, and pallet trucks.

The grooved rubber effectively cleans outdoor areas (zone 1) by removing dirt before it enters the building. The alternating cassette brush profiles enhance this cleaning effect by removing foot-borne dirt like sand and grit, making it ideal for entrances with high dirt intake.

Available in any width and length, all our Top Clean aluminium entrance mats feature an 'open structure' that allows dirt and moisture to fall into the matwell recess, reducing indoor dirt accumulation. The mat's base includes advanced rubber inserts for anti-slip and noise reduction. This visually appealing, extra-large 22mm deep entrance mat ensures years of outstanding cleaning performance, making it a reliable choice for keeping commercial spaces clean and safe.

Details

Clean-off zone (refer to the video guide below)	Coarse Dirt/ Intermediate Zone
Usage	Outdoor
Suitable Traffic	Medium
Load	Normal
Trafficability	Luggage Trolley Shopping Cart Transport Trolley Pallet truck
Properties	Barrier Free Stainless Recyclable Fire Protection

Technical Specifications

Profile width	37 mm
Wall thickness	up to 1.5 mm
Profile distance	approx. 5 mm
Mat height	approx. 22 mm
Frame height	25 mm
Weight	16.3 kg / m²

Special Features

Aluprofil with highly effective noise reduction
Protects high quality soils
Rollable and easy to clean
Available in any width and length
Special shapes possible on request
Grooved rubber fire behavior Cfl-s1
Cassette Brush fire behavior Bfl-s1 (on request)

Cleaning and Maintenance

To ensure the optimum performance of the mats, please read the following instructions for installation and care. Like any floor covering subject to heavy use, our Entrance Matting Systems benefit from a regular cleaning regime; the optimum frequency of cleaning depends on the specific traffic rate and the degree of soiling.

Regular Cleaning: Clean the surface of the aluminium profile
mat regularly with a vacuum cleaner. Set the vacuum cleaner to its
highest setting.
Cleaning in the event of heavy soiling: When heavily soiled, roll
up the mat after vacuum cleaning and remove the dirt that has been
collected in the frame.
Cleaning in the event of extreme soiling: Extremely dirty matting can easily be cleaned with a high-pressure cleaner. After the cleaning process, put the mat in a vertical position for quick drying. Return dried mats into the mat well. Your entrance mat will be fully functional again.
Replacing single ribbed carpet strips: Individual tread inserts can
be replaced when heavily contaminated or damaged. New inserts
can be fixed into existing aluminium profiles using double-sided
adhesive tape. Customers can replace damaged inserts themselves.

Replacement of Ribbed Carpet Strips

Bad soiling and objects such as cigarette butts and chewing gum as well as oil stains can severely impair the cleaning function of entrance mats.
For this reason, we have developed a method for replacing badly soiled ribbed carpet strips. The used ribbed carpet strips are detached from the
aluminium profile of the mat, so that residue and dirt can be removed from the base frame. A self-adhesive tape is attached to the back of the new
ribbed carpet strip, which is then fixed in position.

Which Aluminium Entrance Matting Is Right For you?

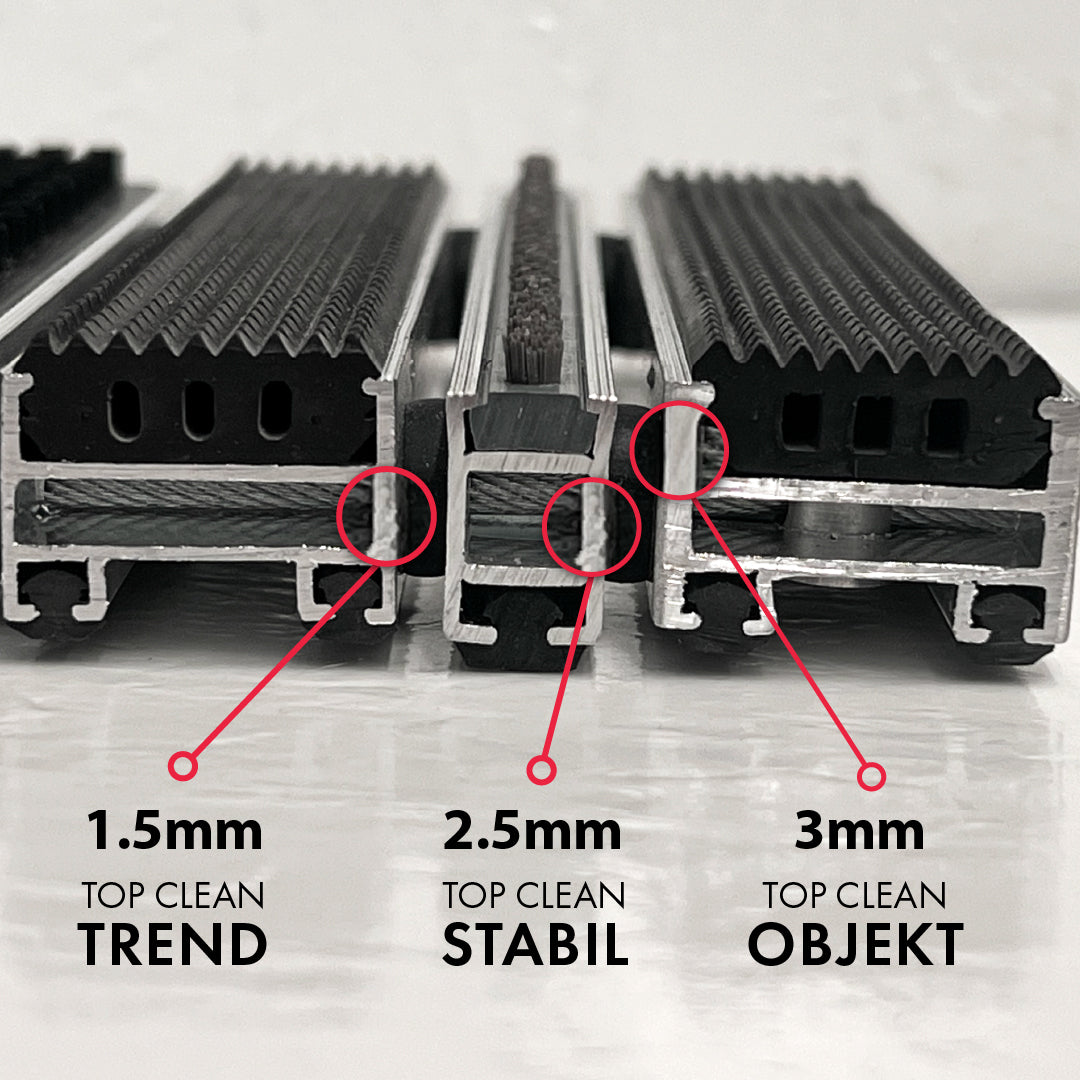

Choosing the right aluminum entrance matting system depends on the level of foot and wheeled traffic your space experiences. Use this table to compare the technical specifications of each collection of aluminum entrance matting system.

Aluminum Thickness

Static Load Capacity

Trafficability

Rolling Load (per Wheel)

Top Clean Trend

1.5 mm

Up to 6 tons

770 lbs

440 lbs

Top Clean Stabil

2.5 mm

Up to 8 tons

2,205 lbs

550 lbs

Top Clean Objekt

3.0 mm

Up to 10 tons

9,260 lbs

1,540 lbs

Top Clean High

2.5 mm

Up to 6 tons

6,610 lbs

1,430 lbs

Top Clean Light

up to 1.5 mm

Up to 7 tons

770 lbs

495 lbs

Top Clean Flat

up to 1.5 mm

Up to 7 tons

770 lbs

495 lbs

Bold, Custom Curves for Your ENTRANCE

Whether you need custom rounding, specific dimensions, or unique profile inlays, we'll give your entrance area the perfect curves.

Experience top-tier impact sound insulation with our PREMIUM aluminum profile mats.

Featuring highly effective grooved rubber, these mats provide excellent sound insulation and reliable moisture removal.

Enjoy a quieter, cleaner environment with our advanced entrance matting solutions.

Customizable Color Options with Powder Coating

Customize your mat with a variety of color options available through our durable powder coating process.

Create a tailored and visually appealing environment with our advanced entrance matting solutions.

Architects & Designers, Order a

Premium Aluminum Entrance Mat Sample Kit

Ideal for architects, designers, and facility managers, it’s the perfect tool for selecting the ideal entrance matting solution for your projects.

Perfect for previewing our premium products, this kit allows you to see firsthand the efficiency and durability of our matting systems.

Get yours now

Customize, build and choose the best mat that suits your needs

Ribbed Carpet

Crafted from moisture-absorbing material, Ribbed Carpets are designed to enhance safety in internal building entrances. By effectively trapping moisture, it helps prevent slips and trips, ensuring a secure and dry entryway.

Scraper Bar

With its superior dirt removal capabilities, the Scraper Bar provides added protection, ensuring a longer lifespan for your flooring. It also keeps your space pristine and well-maintained.

Grooved Rubber

Grooved rubber is an efficient cleaning concept for outdoor areas removing dirt before entering the building

Cassette Brush

Designed to provide exceptional removal of grit and stones to ensure your surfaces remain clean and free from abrasive particles.

Brush Strip

Gives additional benefit of brush strips for extra removal of grit and stones

Clean-Off Zones for Enhanced Entrance Management

For Optimized Cleanliness

3-zone solution

Our mats are designed to effectively collect dirt and moisture in indoor, outdoor, and intermediate areas, creating tailored clean-off zones.

✅ Indoor zones
✅ Outdoor zones
✅ Intermediate zones

Our mats create perfect clean-off zones for systematic protection.

ADDITIONAL FEATURE AND CUSTOM-MADE FRAMES TO HOUSE YOUR TOP TREND ENTRANCE MATTING AND KEEP IT SECURELY IN PLACE

CONNECTORS FOR EASY INSTALLATION

Our premium multi-part mats feature high-quality V2A steel sheet connectors, ensuring easy installation and disassembly without rifts between segments.

Whether divided by length or walking direction, our mats maintain a unified appearance with discreetly integrated connectors and black spacers for precise profile alignment.

Enjoy the look and functionality of a single-piece mat, even with large-size installations.

SPEZIAL ANGLE FRAME 25

ALUMINIUM, 25 X 25 X 3 MM
Profile width: 25 x 3 mm
Mat height: approx. 22 mm
Frame height: 25 mm
Weight: 0.4 kg / m

• Gaps, curves and diagonals can be made according to drawing or template for an extra charge
• Frame with corner connector and anchor
• Corner connectors and anchors are included, uninstalled when delivered
• Profile can be supplied powder-coated to any RAL colour (for an extra charge)

SPEZIAL ANGLE FRAME 25

STAINLESS STEEL, 25 X 20 X 3 MM, WITH ROUNDED EDGES
Profile width: 20 x 3 mm
Mat height: approx. 22 mm
Frame height: 25 mm
Weight: 1.1 kg / m

• Gaps, curves and diagonals can be made according to drawing or template for an extra charge
• Frame with corner connector and anchor
• Corner connectors and anchors are included, uninstalled when delivered

T-BAR 25

ALUMINIUM, 25 MM
Mat height: approx. 22 mm
Frame height: 25 mm

• Profile can be supplied powder-coated to any RAL colour (for an extra charge)
• Natural aluminium
• For all multi-part Top Clean mats without connectors in profile length

Frequently asked questions

The ramped edge frame is the ideal solution for surface mounting entrance matting, where no matwell is present. All of the Top Clean matting with 10mm or 17mm heights can easily be equipped with ramped edge profiles. Entrance mats resting on ramped edge frames provide accessibility for wheelchairs and pushchairs.

It is not absolutely necessary, but it is recommended. It protects the edges of your floor covering and it rounds off the overall appearanc

We have two 2 types of frame:

STAINLESS STEEL, 15 X 20 X 3 MM, WITH ROUNDED EDGES

SPEZIAL ANGLE FRAME 15 ALUMINIUM, 15 X 20 X 3 MM

We recommend using any of these 2 SPEZIAL angle frames for the installation of all Top Clean matting systems to ensure optimum fixation and easy release for cleaning purposes. Frame, corner connections and screws are made of one material, stainless steel or aluminium, to prevent corrosion. Frames are mitre-cut and ready for screw connection.

For all multi-part Top Clean mats without connectors in the profile direction. This help simplifies the laying of the mat, especially after cleaning.

All frames and mats are made to order. For special shapes (incl. gaps, curves or diagonals), templates or measurement may be required.

0.7 mm must be taken into account from the pit size to the external frame size, as the corner connectors of the frame add extend. From the external frame size to the mat, 1 cm is taken into account for the expansion tolerance and 0.5 cm from the internal frame size to the exact mat size. For orders with exact mat sizes, the expansion tolerance must be taken into account by the customer.

For indoor use, ribbed carpet, brush strip, cassette brush or scraper bar are suitable, for outdoor use cassette brush, grooved rubber and brush strip. All designs are also possible in alternation.

Mats weighing 40 kg or more should be divided in the walking direction if possible. From a profile length of 300 cm, the mats must be divided in profile length, as otherwise they become too unwieldy and heavy to insert and maintain. Profile length divisions should be made outside the main traffic routes. Necessary divisions are included (without surcharge).

The fire protection classification depends on the upper material. Our ribbed carpet (fine ribbed carpet) and the grooved rubber correspond to the fire protection classification Cfl-s1.

Depending on the upper material, the mats have slip-resistant properties from R9 to R13 according to DIN 51130.
